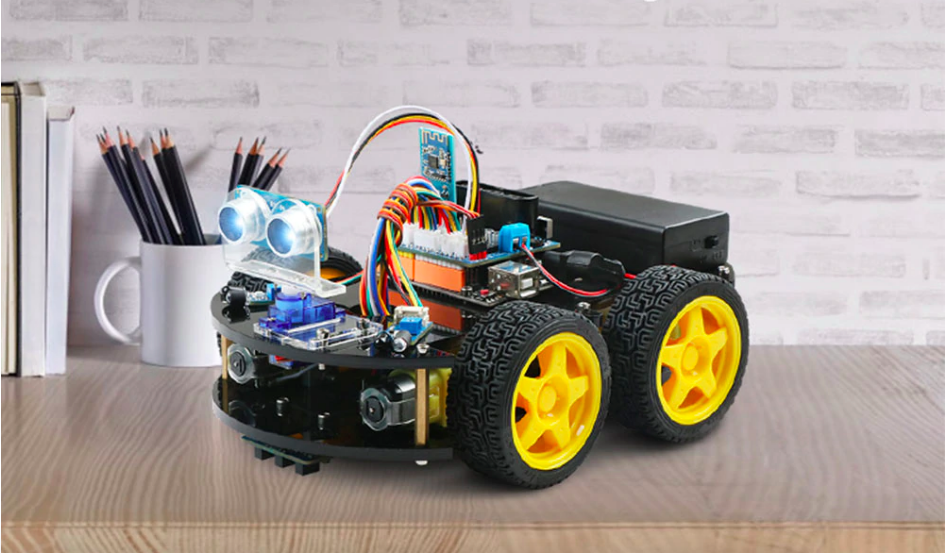

DIY Robot
An educational kit for beginners to get hands on - experience about Arduino programming , electronics assembling and robotic knowledge

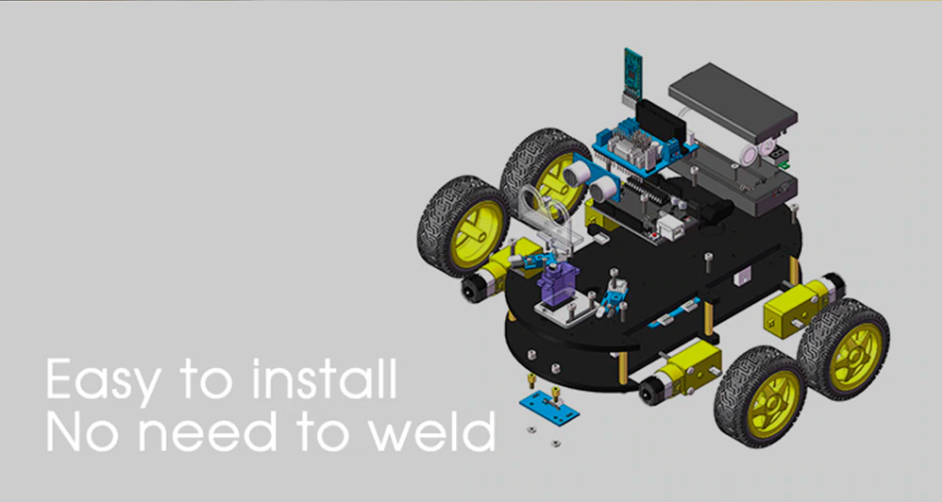

It’s up to you to decide if you want to follow the guide or DIY it with your own imagination!! Cultivate practical ability and improve logical thinking ability!
Wanda´s DIY Robot includes HC-SR04 ultrasonic sensor, infrared barrier, L293D motor drive board, 9g micro servo motor, line tracking module and Bluetooth module, ect.

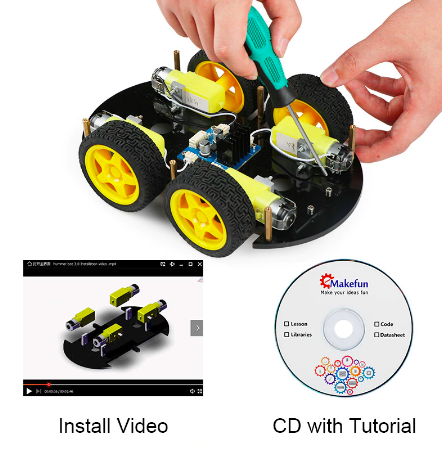

Its very easy to operate and install, it brings a CD with the best tutorial including the programs and codes which bring you to the robot car world.

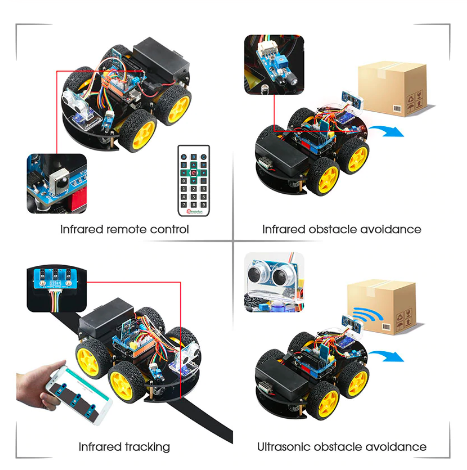

It has different working modes such as infrared/ultrasonic obstacle avoidance, Infrared object tracking, Infrared line following, Ultrasonic with servo obstacle avoidance (Detecting in forward, left and right directions)

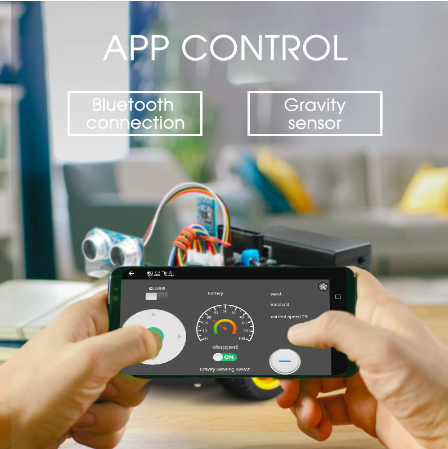

Automatically self-built signal hotspot after power on, the user just needs to connect smart phone with the car's hotspot to control the car through an Android app.
Components List
2 x smart car Board
1 x CD-ROM with tutorial
4 x DC geared motor
1 x USB Cable
1 x IR remote control
1 x Emakefun UNO R3 MainBoard
1 x For Arduino extension board
1 x JDY-16 Bluetooth module
1 x Ultrasound Module
2 x Infrared obstacle avoidance module
1 x L298N tmotor drive board
1 x Infrared line tracking module
1 x 18650 li-battery box
4 x 65mm wheel core
1 x 18650 battery charger
1 x SG90 servo
1 x Potwer indicator digital tube
1 x SG90 Servo fixed plate
1 x Ultrasonic Holder
4 x taluminum alloy holder

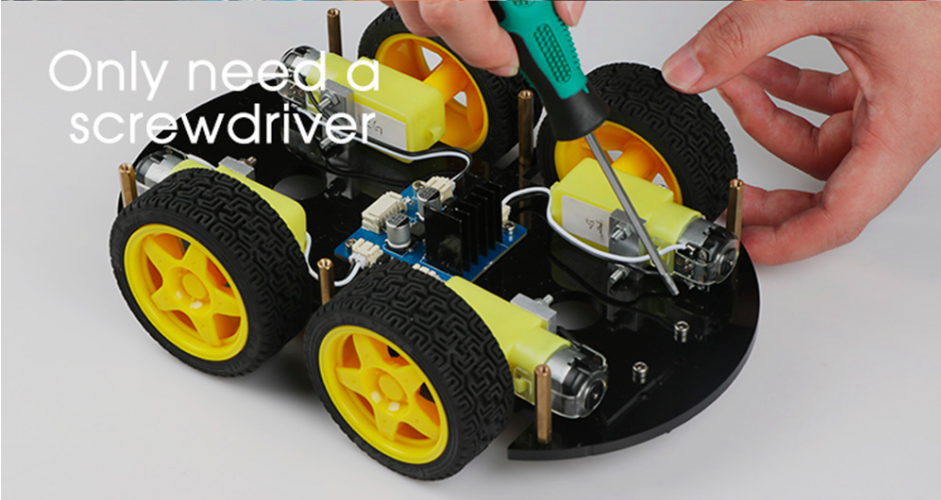

1 x 3.0-7.5mm Phillips screwdriver
1 x Cross wrench
6 x M3*30mm Dual channel copper posts
2 x M3*5+6mm Single channel copper pillar
12 x M3 *12mm 14 x M3 *10mm 2 x M3 *8mm Socket head cap screws
8 x M3x8 Round head screw
28 x M3-Hex nuts
2 x M2-Hex nuts
8 x M3*30MM Crosshead screws
4 x M3*8MM
2 x M2*12MM Crosshead screws
Several Cable Tie
------------------------------------------
------------------------------------------
Code it from all platform, the mBlock Blockly App (iOS/Android) is a great place to train the logical thinking for new coders. The advanced mBlock software (Windows/MacOS/Linux/Chrome) is one of the most popular entry-level coding platform with more than 450,000+ users that helps you to bring your creativity into reality.
Battery Requirements: 4 pcs AA batteries or 1 pcs 3.7V 1800mAh Lithium for mBot and CR2025 coin battery for Remote. Batteries are not included. Lithium battery can be bought via searching B07KPVH8H3 on amazon.
------------------------------------------------------------------------------------
Noted:
1.No battery inculded in the package.
2.In the video, the tires of the car are blue. Due to production problems, the car's tires change from blue to yellow, others are the same, please know that.
